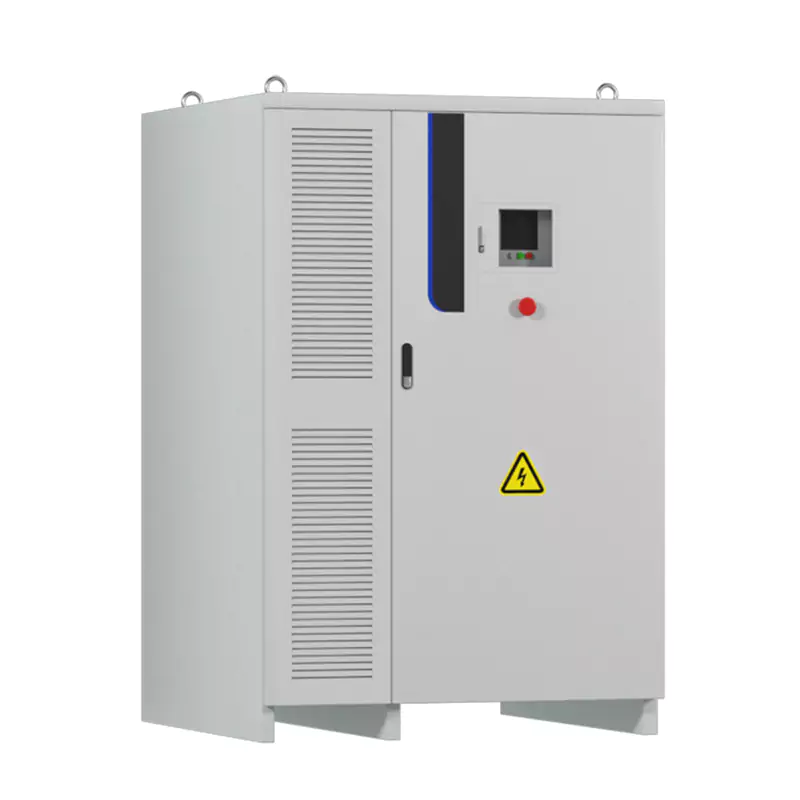

261kWh Outdoor LFP (Lithium Iron Phosphate) Liquid-Cooled Energy Storage Cabinet | C&I Series

261kWh Outdoor LFP (Lithium Iron Phosphate) Liquid-Cooled Energy Storage Cabinet | C&I Series

The HJ-ESS-261L is a 261kWh Outdoor LFP (Lithium Iron Phosphate) Liquid-Cooled Energy Storage Cabinet, ideal for large-scale commercial and industrial use. With its high-performance liquid cooling system and advanced energy management capabilities, it ensures reliable, efficient, and safe energy storage. Suitable for peak shaving, backup power, and renewable energy integration, this robust solution is perfect for energy-intensive facilities and harsh outdoor environments.

Product Detail

Application Cases

Video

Send Inquiry

  • Farms and Estates: Perfect for energy-demanding agricultural operations like greenhouse farming, aquaculture, and irrigation systems, providing a stable energy supply to maintain peak productivity.
  • Microgrid Solutions: Ideal for creating independent energy networks, such as microgrids, reducing reliance on centralized grids and boosting energy independence.
  • Industrial Facilities with High Power Demands: Tailored for factories and production plants with variable energy consumption, ensuring a reliable power supply while minimizing operational disruptions.
  • Data Centers and IT Infrastructure: Designed for data centers and IT infrastructures requiring consistent, high-performance energy solutions to support uninterrupted business operations.

Main parameters

AC/DC parameters

DC parameters AC parameters
Battery Type Lithium Iron Phosphate AC side rated power 125KW
Cell capacity 3.2V/314Ah Maximum power on AC side 135KW
System battery configuration 1P260S Cable total harmonic distortion rate <3% of rated power
Battery rated capacity 261.248KWh AC side rated voltage 380V AC
Battery voltage range DC600-1000V Communication access method 3P+N+PE
Charge and discharge rate 0.5C Rated grid frequency 50/60Hz
Discharge depth 80% Power factor range 0.98
Battery cooling method liquid cooling Off-grid operation support

System parameters

size 1200*1400*2400mm(reference) Temperature control method Liquid cooling unit
Protection level IP55 fire protection plan Aerosol, perfluorohexanone
System communication protocol Standard: Modbus Communication Interface RS485, RJ45
